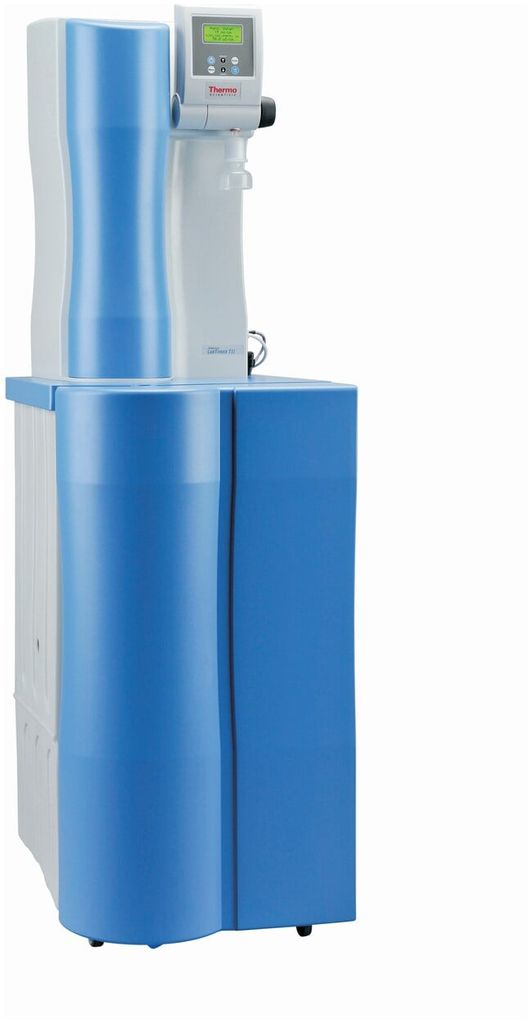

Barnstead™ LabTower™ TII Water Purification System

Consistent water quality:

• Type 2 laboratory water meets ASTM Type II, CSLS-CLRW and ISO 3696 international standards.
• The LabTower is designed to continuously recirculate purified reservoir water to preserve water quality even during periods of inactivity.

Compact mobile design:

• Three system options are available with permeate flows of 20, 40 or 60L/hr.
• Stand-alone design with integrated 100L reservoir takes up zero bench space.
• Castors allow easy relocation.
• Systems can be upgraded later to accommodate growing water demands.

Two ways to dispense water:

• Dispense directly from the system via the dispensing valve for calibration solutions, reagent preparation, filling of containers, general rinsing purposes, etc.
• Dispense from the reservoir to supply autoclaves, dishwashers, ultrapure water systems, etc.

Integrated 100L reservoir:

• Up to 100L of high purity water is ready for dispensing when needed.
• High purity polypropylene reservoir is opaque to light.
• Conical bottom allows complete emptying for efficient cleaning and disinfection.
• Adjustable setting for reservoir volume can be programmed for times when demand is low, allowing you to only store water that you can use.

Clear information on system display:

• The large four-line display is code-protected to prevent accidental changes in system settings.
• Illuminated and easily readable, the display provides information on resistivity or conductivity and operating mode status, such as “roduction”, “stand-by” or sanitization and volume of the reservoir in percent.

GLP-compliant documentation:

• LabTower TII has been developed to meet or exceed GLP requirements.
• Recorded and traceable data can be obtained by print-out via the RS-232 interface and accessory printer.
• Highly qualified and precise measurement of the conductivity is ensured by the cell constant of 0.01 cm^-1 to an accuracy of ±0.1°C.

Pretreatment:

• External pretreatment required

Reverse osmosis and reservoir:

• Pretreated water is pressure-forced through the permeable reverse osmosis module removing 97- 99% of all inorganic ions and 99% of dissolved organic substances, as well as microorganisms and particles.
• The built-in 100L reservoir has a conical bottom outlet to optimize cleaning and sanitization.

Ion exchange and UV:

• RO membrane removes up to 99% of impurities. All remaining ions are removed by the low TOC, high-purity resins in the ion exchange cartridge.
• Irradiation with UV light (TII units with UV option only) eliminates any bacteria or germs that are present.

Routine laboratory tasks

• Rinsing and washing laboratory glassware
• Supplying water for autoclaves and ultrapure water systems
• Preparation and dilution of buffers and reagents
